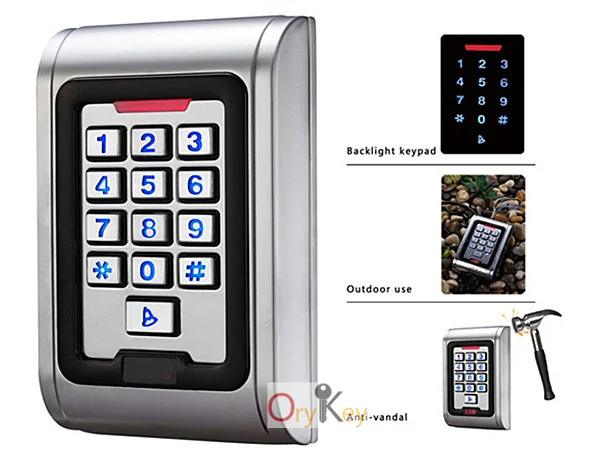

- Strong Zinc Alloy Electroplated anti-vandal case
- Full programming from the keypad
- 2000 uses, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Wiegand 26 output for connection to a controller
- Adjustable Door Output time, Alarm time, Door Open time
- Very low power consumption (30mA)
- Fast operating speed, <20ms with 2000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in light dependent resistor (LDR) for anti tamper
- Built in buzzer
- Red, Yellow and Green LEDS display the working status
-Card Reading Distance：3-6 cm
-Idle Current：25±5 mA
-Lock Output Load：Max 20A
-Alarm Output Load：Max 20A
-Operating Humidity ：10%- 90% RH
-Environment ：Conforms to IP68
-Adjustable Door Relay time：0 -99 seconds
-Adjustable Alarm Time：0- 3 minutes
-Wiegand Interface：Wiegand 26 bit
-Wiring Connections：Electric Lock, Exit Button,, External Alarm

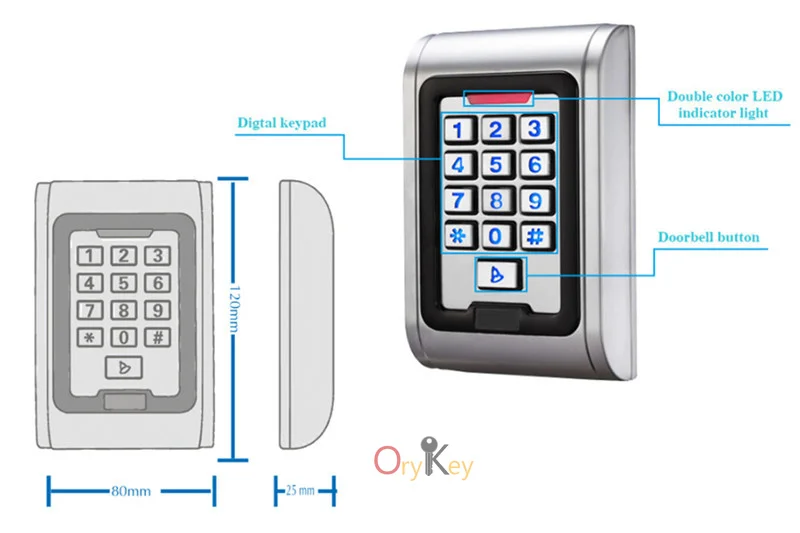

-Dimensions：L120 x W80x H25 mm
